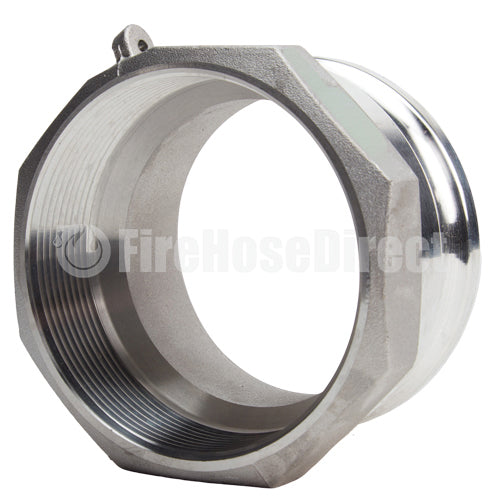

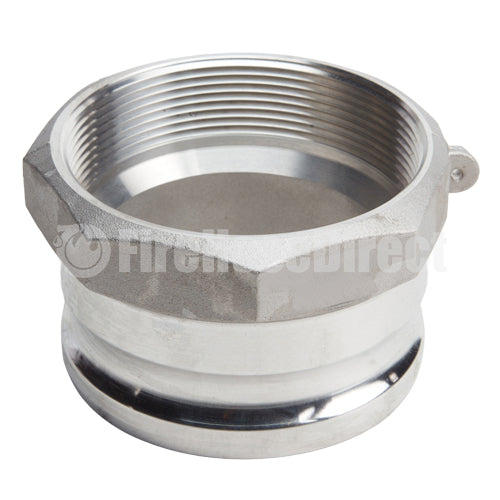

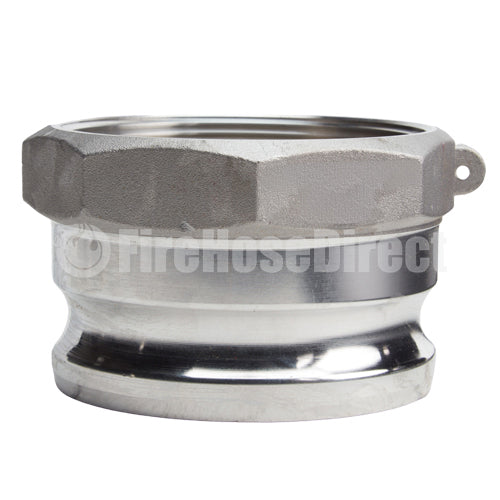

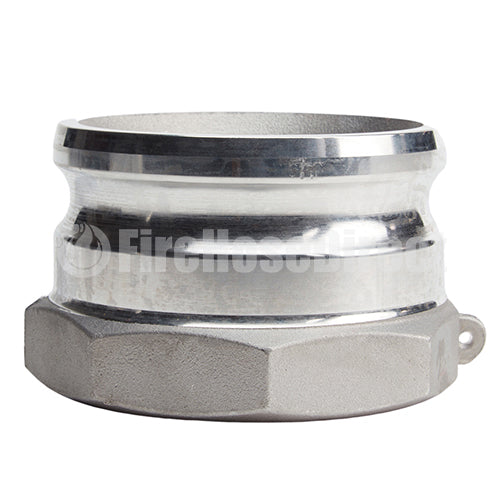

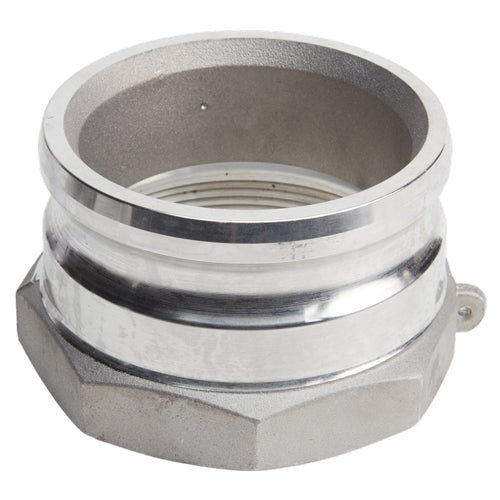

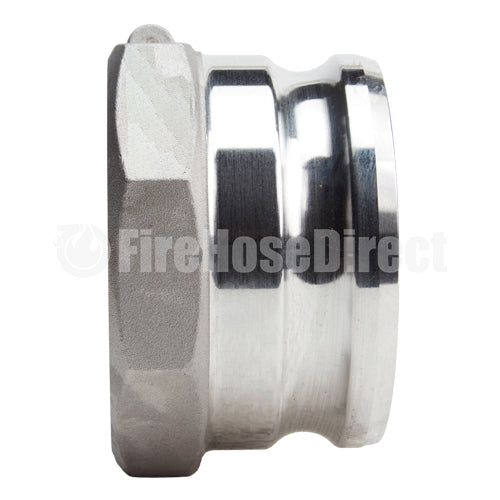

Global type "A" aluminum 4 inch male camlock (Cam & Groove) coupler to 4 inch female BSP threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections
The male side of this adapter will only connect to 4 inch female camlock. The female threaded side of this adapter will only connect to a 4 inch male British Standard Pipe (BSP) Thread.
British Standard Pipe (BSP) can be most commonly found in Canada, UK, Europe, Asia and Australia. It is a finer thread than National Pipe Thread (NPT), and will not seal properly if used in conjunction with it.
Two types of threads are used
British Standard Pipe Taper (BSPT) and British Standard Pipe Parallel (BSPP). British Standard Pipe Taper uses a tapered thread system, and sealant is provided to help secure the male and female connection
British Standard Pipe Parallel uses a parallel thread system, and a rubber gasket is often included to secure the male and female connection
How it works
To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
Cam and Groove Couplings Industries
Steel foundries
Mines
Construction
Chemical
Petroleum
Sanitary
Government
Nuclear
Aviation
Marine
Rail
Storage
Dry bulk
Applications
Wine
Food
Drugs
Reverse osmosis systems
Water treatment
Water transport
Irrigation
Waste / vacuum trucks
Fuel delivery
Grain movement
Hydraulic oil, coolants, gasoline and petroleum products
