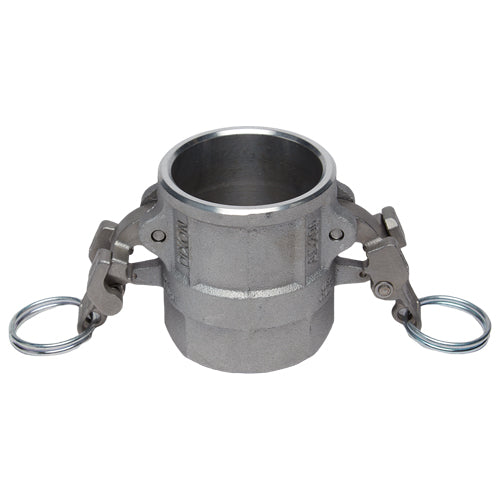

Global type "D" aluminum 2 inch female camlock (Cam & Groove) coupler to 2 inch female NPT threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections
The female side of this adapter will only connect to 2 inch male camlock
The female threaded side of this adapter will only connect to a 2 inch male National Pipe Tapered (NPT) thread, for example, PVC or metal pipe fitting
Features

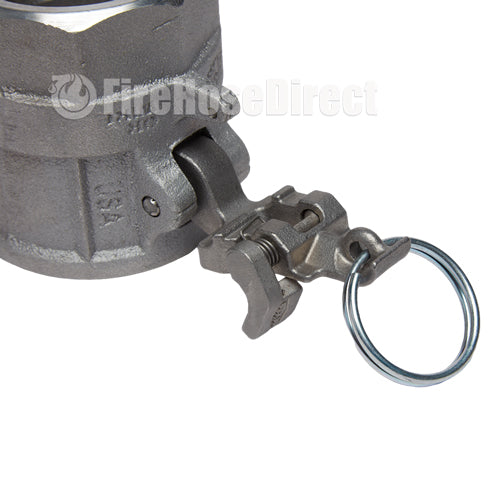

Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
Rotating action helps keep the locking device free of debris.
Designed to protect critical parts from impact and to withstand rugged use.
How It Works
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged.
Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.
Note
If the rotating lever is not flush with the handle, it is not properly engaged.
Safety Notes
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70° with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult the factory.
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Cam and Groove Couplings Industries
Steel foundries
Mines
Construction
Chemical
Petroleum
Sanitary
Government
Nuclear
Aviation
Marine
Rail
Storage
Dry bulk
Applications
Wine
Food
Drugs
Reverse osmosis systems
Water treatment
Water transport
Irrigation
Waste / vacuum trucks
Fuel delivery
Grain movement
Hydraulic oil, coolants, gasoline and petroleum products
