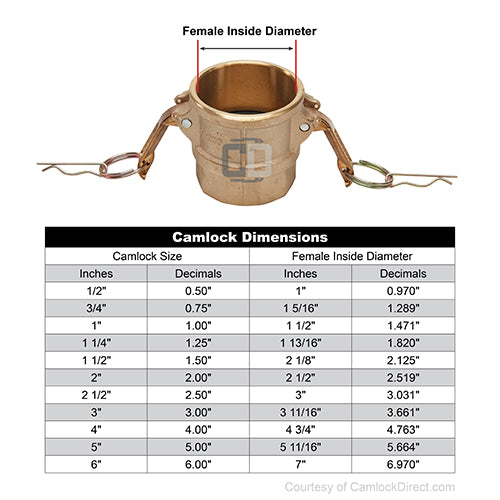

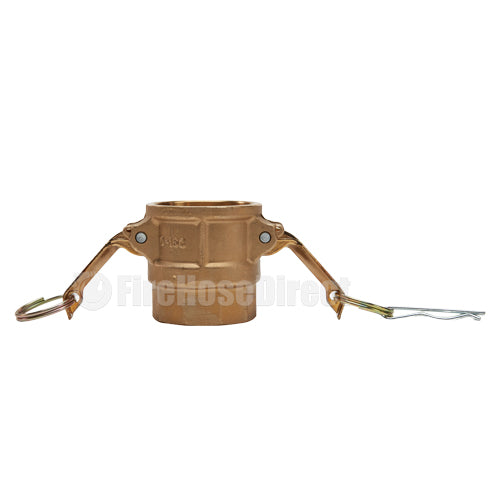

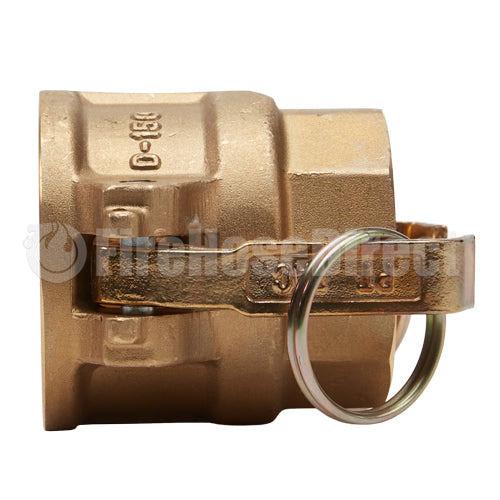

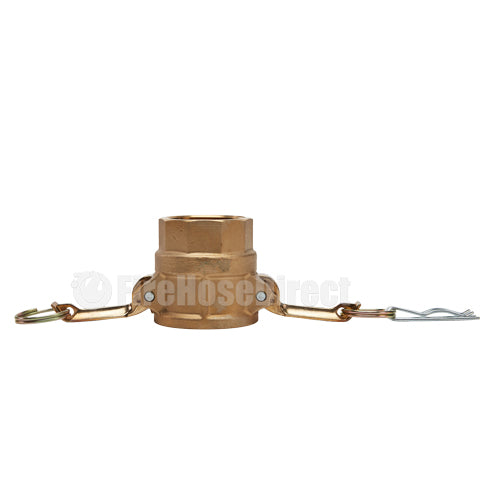

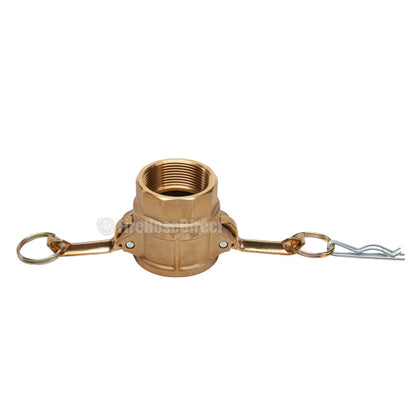

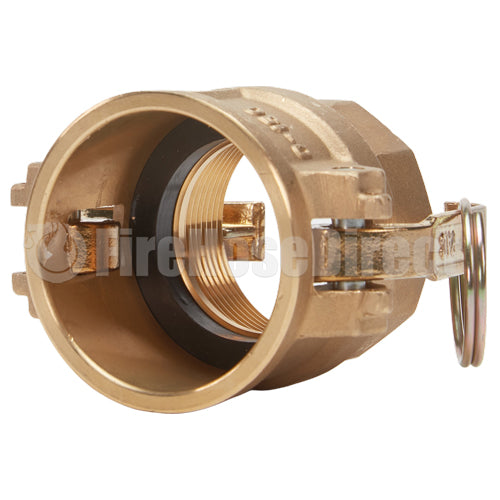

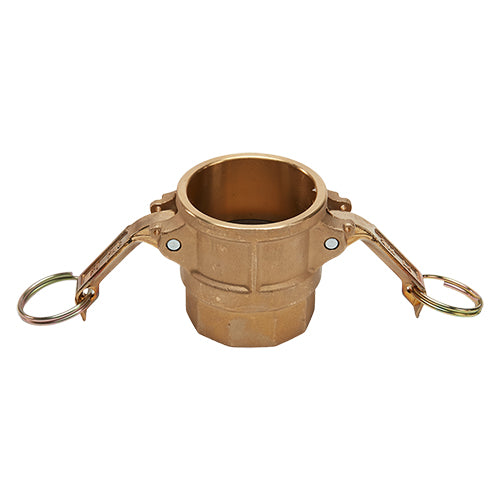

Global type "D" brass 1 1/2 inch female camlock (Cam & Groove) coupler to 1 1/2 inch female NPT threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections
The female side of this adapter will only connect to 1 1/2 inch male camlock.
The female threaded side of this adapter will only connect to a 1 1/2 inch male National Pipe Tapered (NPT) thread. For example, PVC or metal pipe fitting.
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
How it works
To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
Cam and Groove Couplings Industries
Steel foundries
Mines
Construction
Chemical
Petroleum
Sanitary
Government
Nuclear
Aviation
Marine
Rail
Storage
Dry bulk
Applications
Wine
Food
Drugs
Reverse osmosis systems
Water treatment
Water transport
Irrigation
Waste / vacuum trucks
Fuel delivery
Grain movement
Hydraulic oil, coolants, gasoline and petroleum products
