Fire Hose Ramps - 2 1/2" Hoses

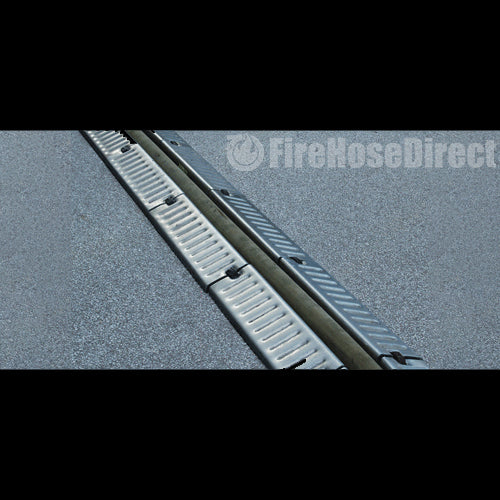

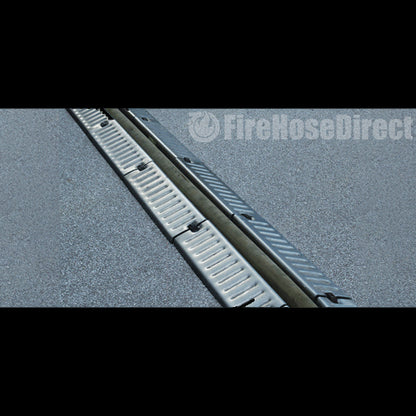

These aluminum fire hose ramps are designed to maintain traffic while protecting up to a 2.5" diameter fire hose. The ramp performs the function of protecting hose, pipe, cable, fuel lines, etc.

Specifications:

• Sold only in multiples of 12 feet: (6 pieces x 2 feet wide) which provides 12 feet of road coverage

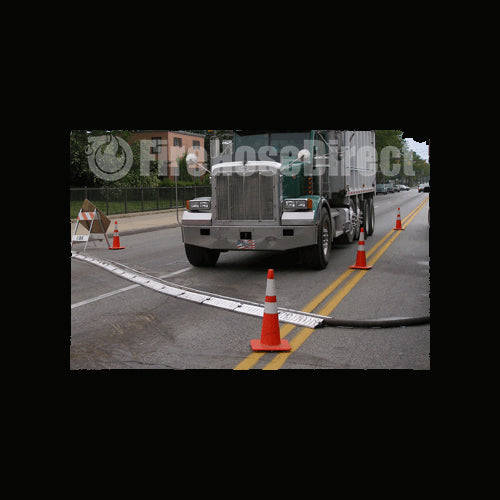

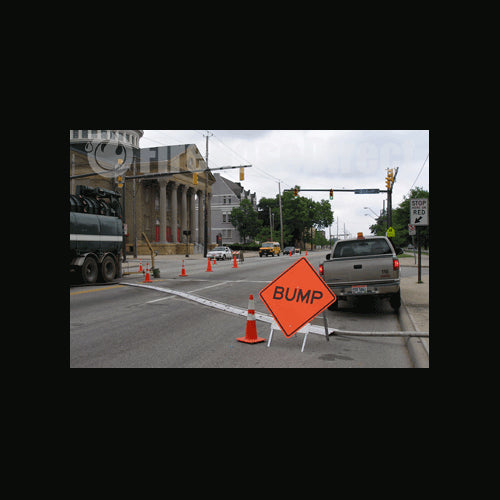

• Position ramps at 30° diagonal across roadway so vehicles cross ramps one wheel at a time
• Aluminum construction

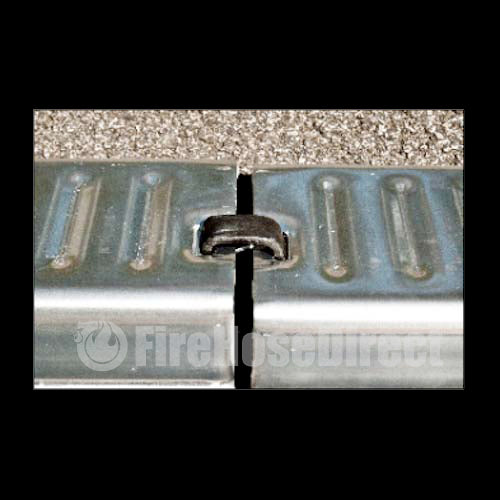

• Clip assembly means no tools required
• Included Clips - 10 to assemble one 12 foot section, 2 to connect additional sections
• Each section weighs 15 pounds

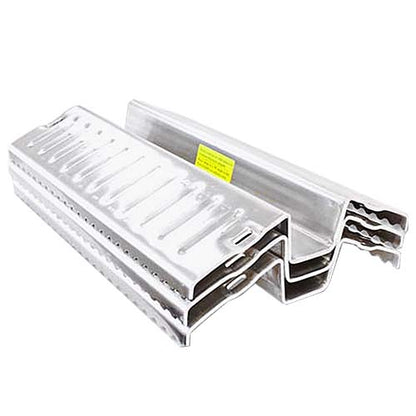

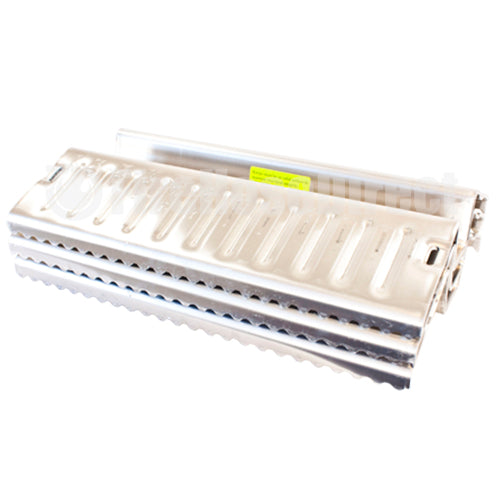

• Stackable space required: 24" L x 18" W x 16" H
• Ramps must be on solid surface to maintain structural integrity

Destructive testing found the breaking point of our ramps to be 47,500 pounds per wheel, when placed on a solid surface. Weight restriction in most states is 20,000 pounds per axle.

Assembly Instructions
