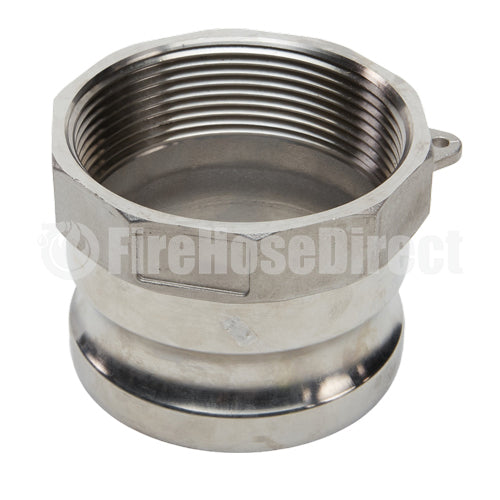

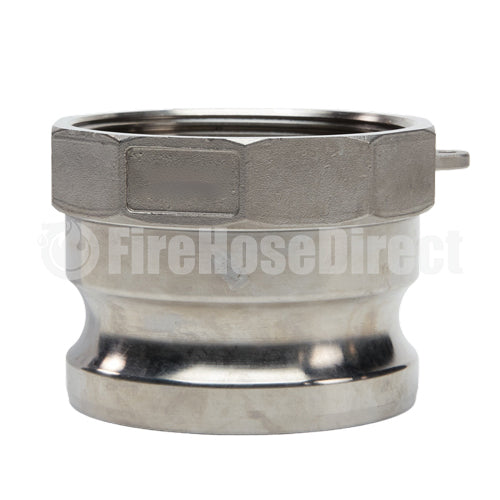

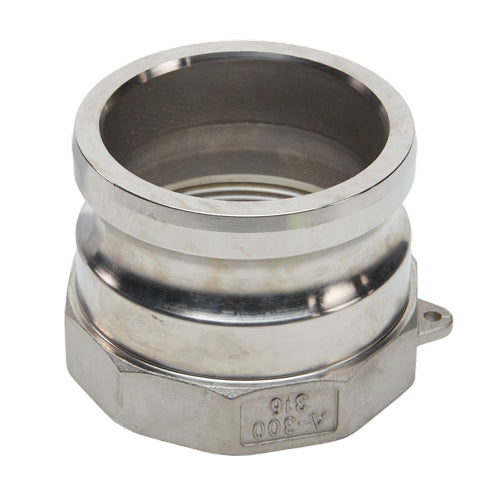

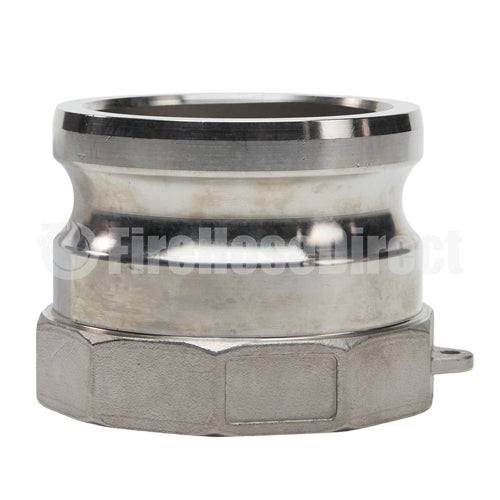

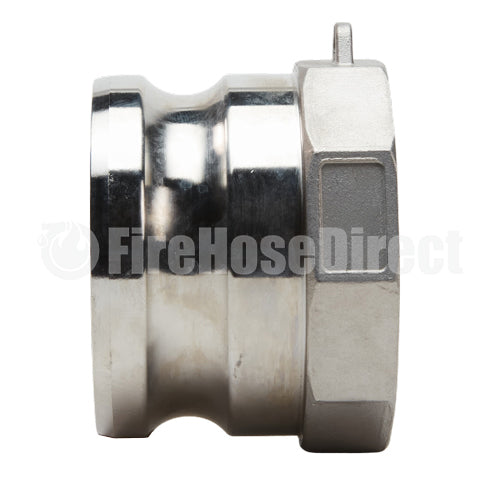

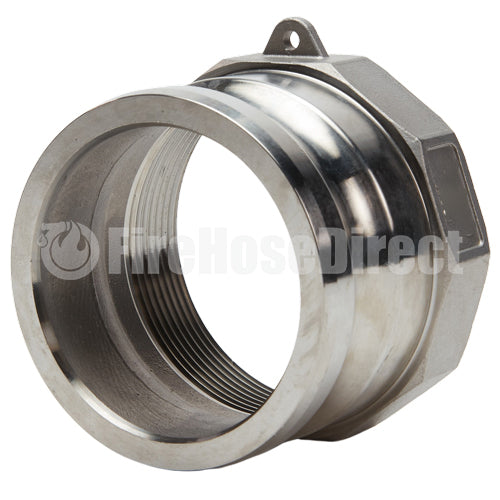

Stainless Steel 3" Male Camlock x 3" Female BSP

Name: Stainless Steel 3" Male Camlock x 3" Female BSP
Brand: FirefighterWarehouse
SKU: GS30M30FB
Price: 123.03 USD
Availability: InStock

1 6

FirefighterWarehouse

$123.03 USD

Sale Sold out

Shipping calculated at checkout.

When Will it Ship: Contact for Lead Time

Quantity

Global type "A" stainless steel 3 inch male camlock (Cam & Groove) coupler to 3 inch female BSP threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

The male side of this adapter will only connect to 3 inch female camlock
The female threaded side of this adapter will only connect to a 3 inch male British Standard Pipe (BSP) Thread

British Standard Pipe (BSP) can be most commonly found in Canada, UK, Europe, Asia and Australia. It is a finer thread than National Pipe Thread (NPT), and will not seal properly if used in conjunction with it.

Two types of threads are used

British Standard Pipe Taper (BSPT) and British Standard Pipe Parallel (BSPP). British Standard Pipe Taper uses a tapered thread system, and sealant is provided to help secure the male and female connection
British Standard Pipe Parallel uses a parallel thread system, and a rubber gasket is often included to secure the male and female connection

How it works

To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries
